The two-lane MIPI-DSI port can be directly connected to an LCD panel.

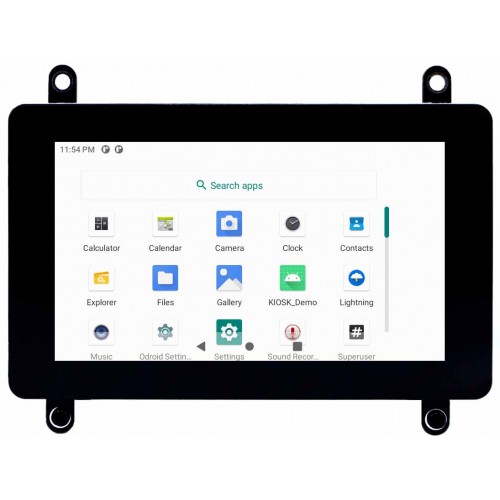

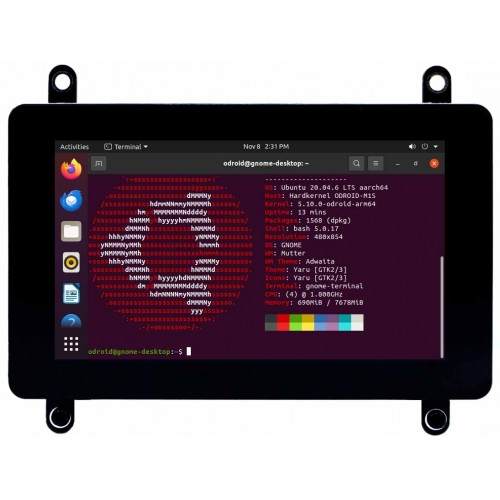

A 5-inch 480×854 wide viewing angle LCD and capacitive multi-touch screen is pre-assembled.

The ODROID-Vu5S is dedicated to ODROID-M1S. It can only be used via a MIPI DSI Connector(J7) on M1S.

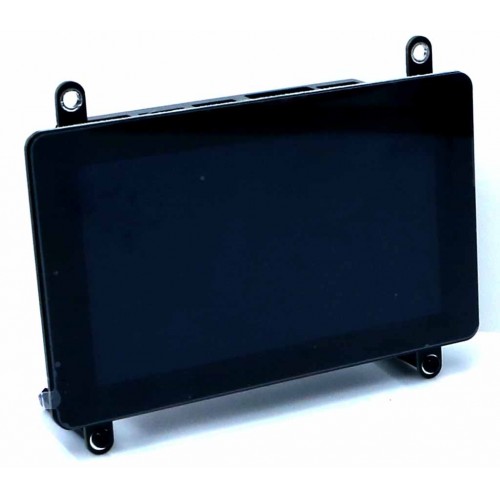

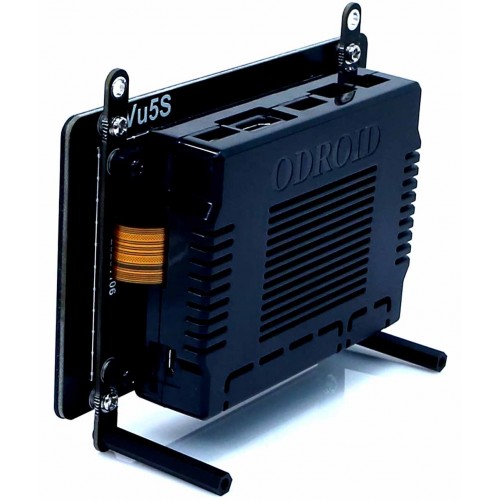

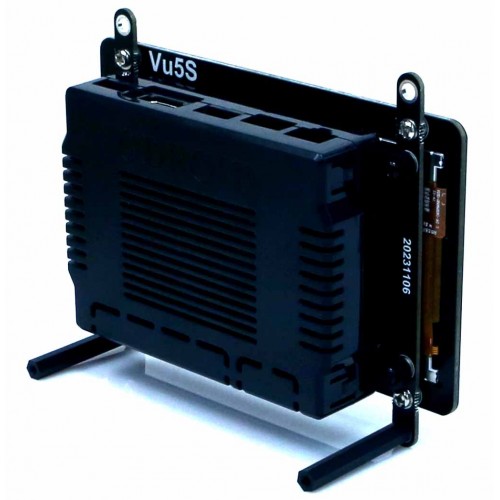

The I-type Bracket PCB is required to dock Vu5S to assemble ODROID-M1S with case.

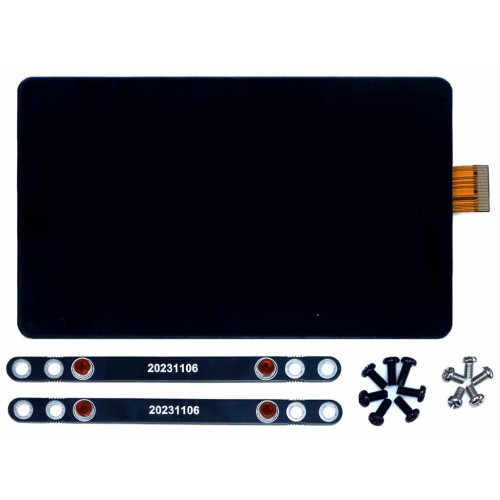

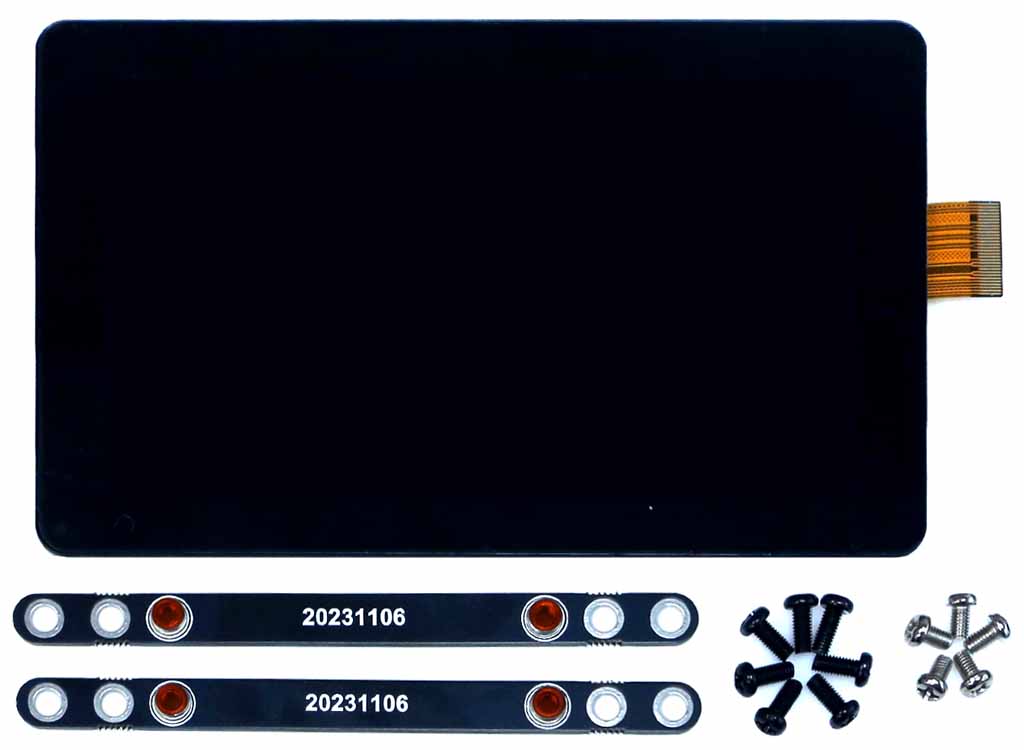

Package includes

A. Assembled 5inch TFT LCD + multi-touch screen * 1EA
B. M3 x 40(BLACK) Support * 3EA including a spare part
C. M3 x 7(BLACK) Bolt * 7EA including a spare part
D. M3 x 5(SILVER) Bolt* 5EA including a spare part

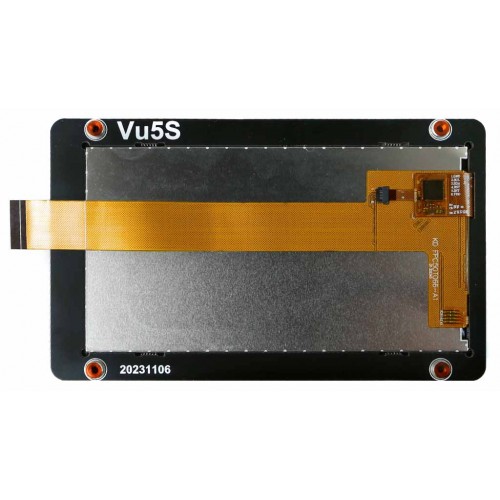

E. Vu5S LCD Frame Board for M1S * 1EA
F. Vu5S I form Bracket Board for M1S * 2EA

Specifications

• 5-inch TFT-LCD
• Portrait 480(H) x 854(V) pixels hardware native resolution
• Mechanical Dimensions : 136(W) x 83.4(H) mm (Assembled with I Bracket: 106)
• Viewable screen size: 109.53 x 61.56 mm (active area)
• 5-finger capacitive touch input
• Power consumption: 1.5W ± 10% (when 50% of duty-cycle for the backlight PWM driver)










  WIKI: https://wiki.odroid.com/accessory/display/vu_series/vu5s
