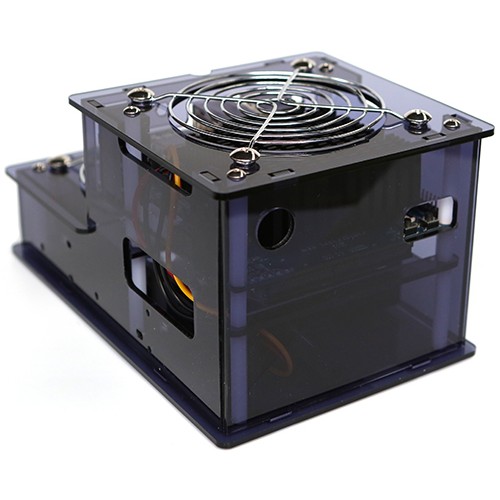

For use with both H2 and H3 models, this “Case Type 4” is designed for the user who needs high a performance network machine, but with a lower storage requirement than the Type 1 Case.

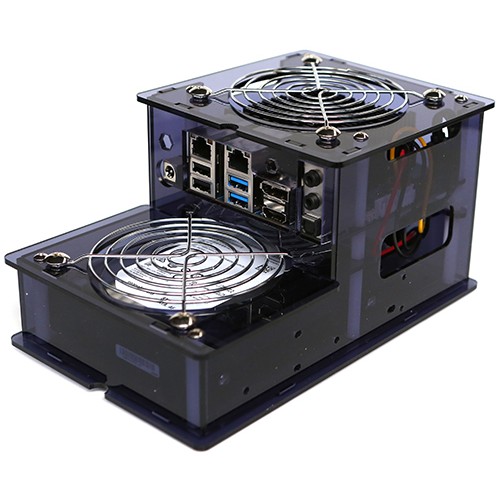

The Odroid H2 and H3 series boards have a fanless design - and this case is designed with two 92mm cooling holes at the top of the case  - one to exhaust the heat from the processor, the other too exhaust heat from Hard Drives.

For extra cooling you also can install 92mm x 92mm standard PC cooling fans into these exhaust holes if larger processing is being used / more heat is being generated.

Supported Storage:

Owing to the physical limitation of the design, only the below combination of the storage drives are supported.

On-board eMMC 5.1 module

On-board M.2 NVMe (NGFF-2280)

Up to 1 x 3.5” SATA HDD or SSD

Up to 2 x 2.5” SATA HDD or SSD (Max height : 15mm)

“SATA Data and Power Cable” must be purchased

The disk drive mounting screws (M3x6mm and #6-32x6mm) are included in the package.

The power and reset switches are accessible through the hole at the front

Optional power on/off switch (diameter 16mm) can be installed at the front

Dimensions:

209 (L) x 132 (W) x 106 (H) mm

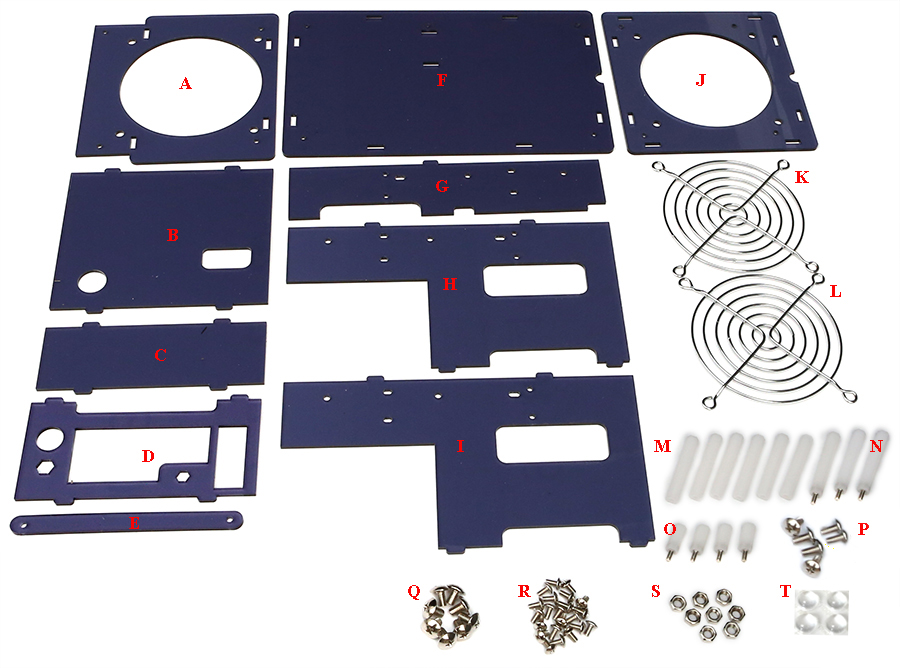

Package Contents:

A. Rear-top panel

B. Front panel

C. Rear-back panel

D. Rear panel

E. Front space filler

F. Bottom panel

G. 2.5”/3.5” inner drive bracket

H. Left panel

I. Right panel

J. Top panel

K. 1 x 92mm stainless cooling fan grill for front-top

L. 1 x 92mm stainless cooling fan grill for rear-top

M. 6 x 40mm (F) PCB Supports

N. 3 x 40mm (M) PCB Supports

O. 4 x 15mm (M) PCB Supports

P. 6 x 6mm #6-32 Round Head Screws

Q. 8 x M5 Truss Head Bolts

R. 20 x 6mm Truss Head Bolts

S. 8 x M5 Nuts

T.  4 x Rubber Feet (Round / Clear)
